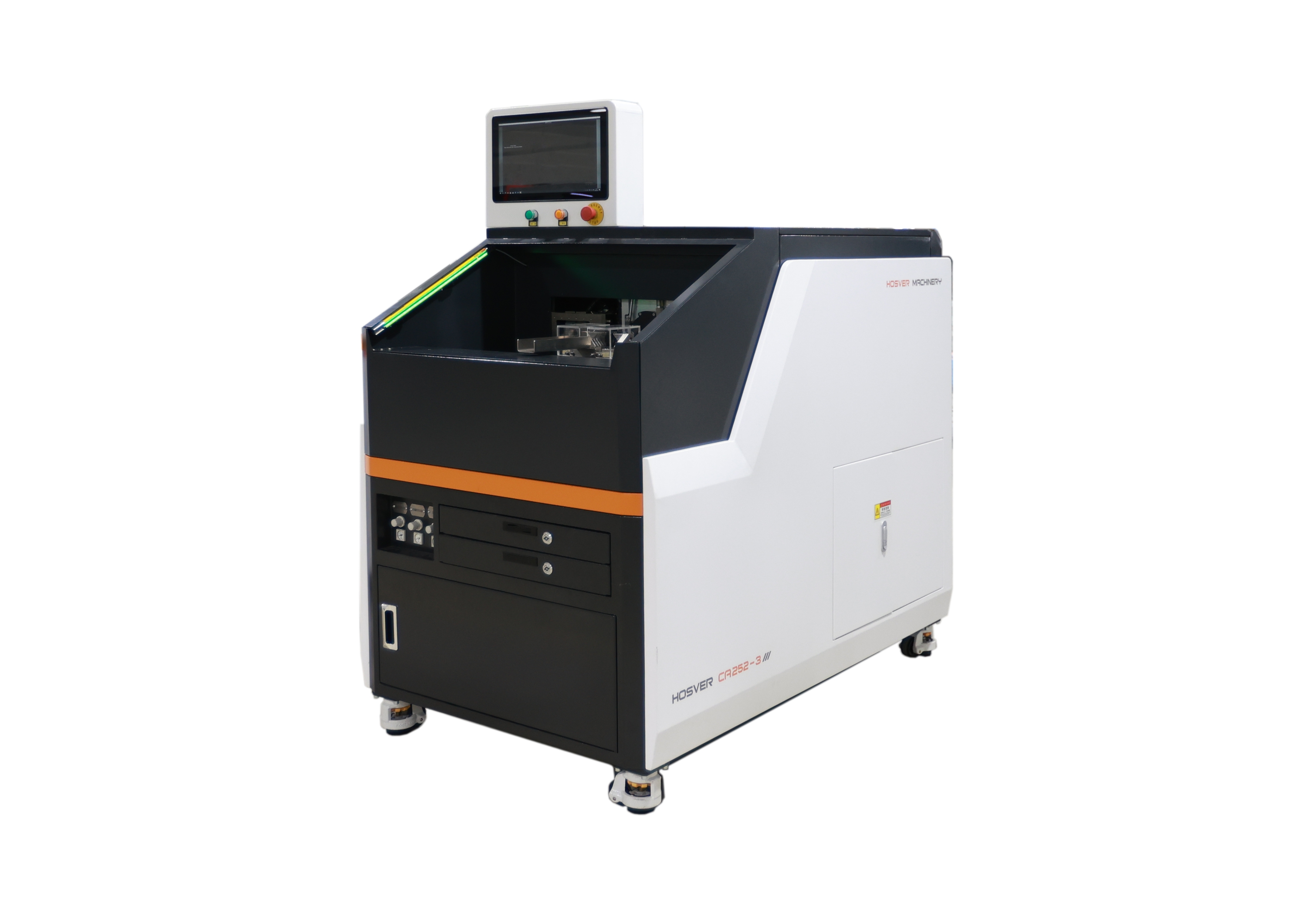

HOSVER-CA253
Scope of application：
It is mainly used in processing of NEV harness,charging pile cable,signal cables with shield,etc.
服务热线：
+86 0512 65436068
It integrates processes of outer insulation stripping,shieldcutting,shield folding and inner insulation stripping with high efficiency and high precision.
-Compact machine with a small footprint and
ergonomic design
-One to three process station are configurable
-Insulation rotary stripping
-Braided shield cutting
-Braided shield folding
-Short tooling changeover time(~5mins)
-One person operation
-Intuitive operation by touch panel
Wire cross section：2.5-95mm²
Minimum cable length for processing≥200mm
Striping length：max.105mm(on demand customization available)
Braided shield cutting length：5-100mm
Braided shield folding length：5-20mm
power supply：220V, 50/60Hz 4.2kw
Cycle time：25s
Air supply ：6bar
Dimensions(L×W×H)：1500 x 900 x 1650mm
Weight ：180kg（397lb）
