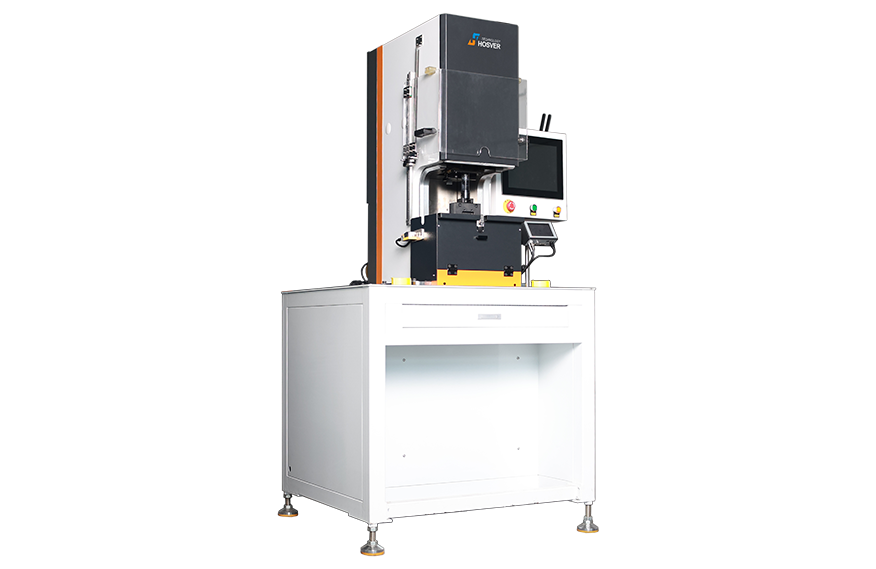

Servo electric cylinder crimping machine

1.Only by servo drive,the crimp height can be set randomly,and the setting accuracy is 0.01mm.

2.Constant torque control,the crimping force will not be reduced or changed at any position and at anyspeed,and the pressure-holding operation at any position can be realized to prevent the large terminalfrom rebounding due to material aging.

3.The actual crimping height can be monitored in real time,and the data can be traced.The system willautomatically alarm when the crimp height is out of tolerance.

4.Parametric operation,there is no need to adjust the height for different crimping dies change,andparameters can be retrieved,saving time for changing mould and scrapping of styles.

5.Real-time feedback of the crimping force,the thrust of the crimping process can be storedand queried,and also can be traced.

2.5-95mm²

power supply:AC220V50/60Hz

capacity:3000W

stroke:50mm

go down speed:20mm/s

pressure:20T

dimension:860*960*2000mm
