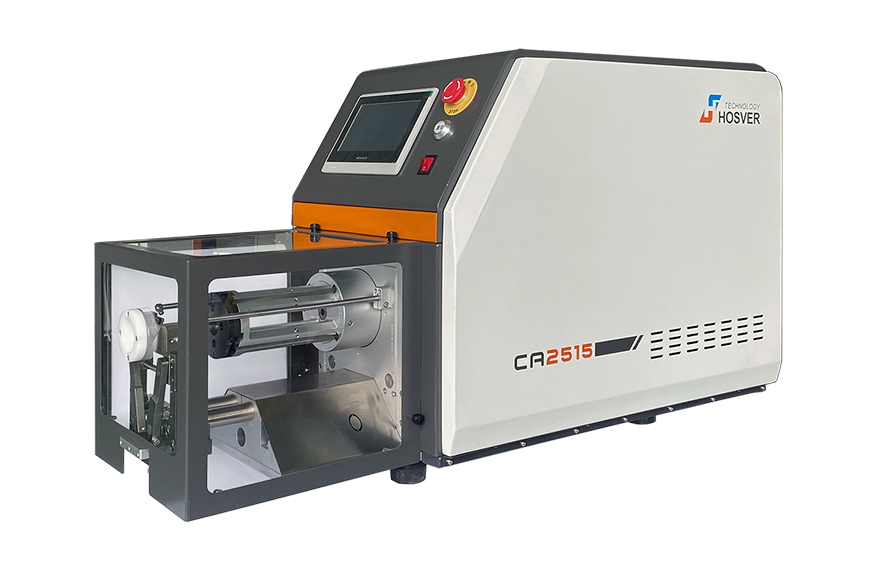

Outer striping

Rotary cutter head,four-piece rotary cutter structure further improves the stability of striping andthe service life of the cutter.The cutter is coated with imported tungsten steel and titanium alloy,which is sharp and durable;servo motor,precision ball screw and multi-point motion controlsystem make the equipment stable and good efficient performance.

3-95mm²

cable diameter range:5-22mm

maximum stiping length:145mm

storage capacity:99 kinds of processing parameterdata

power supply: AC220V 50/60Hz

capacity:31500w

gas source:0.5-0.8mpa

dimension:1040*430*600mm
