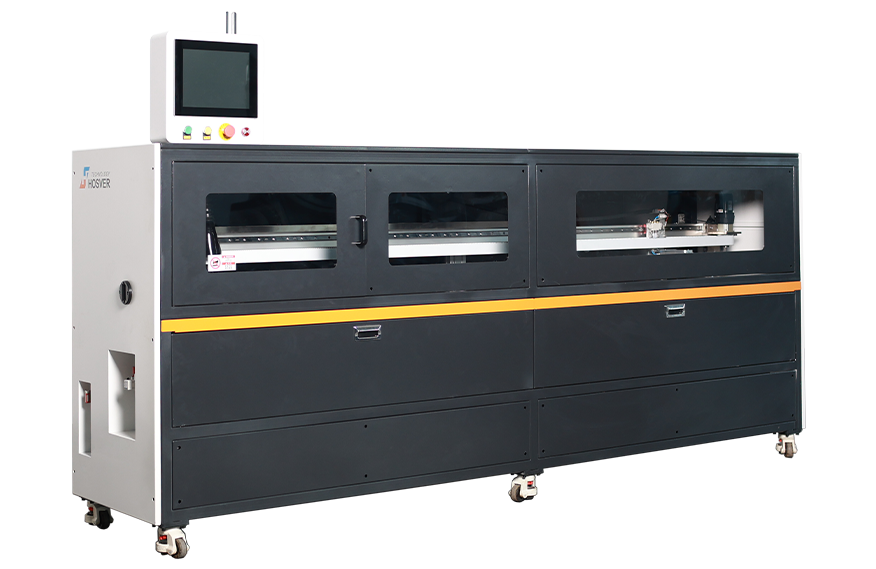

Braided tube cutting machine

HOSVER-CA262

Braided tube cutting machine

Scope of application:

Mainly used in the field of new energy vehicles, the field of charging piles and other types of braid processing。

服务热线:

+86 0512 65436068

立即咨询
Product Features

High-precision hot-cutting, compatible with many types of braid, flat braid will not stick to the incision after hot-cutting, fast speed and high efficiency.

Processing Range

Line length cutting range

30-3000mm(Multiple pulls can be achieved, and the length can be increased)

Wire diameter: flat braided width 10mm-50mm

precision:

Length 100mm-1000mm, tolerance ±5mm

Length 1000mm-2000mm, tolerance ±8mm

Application Parameters

power supply: AC220V 50/60Hz

capacity: 3000W

gas source: 0.6mpa

dimension:950*1550*1300mm
