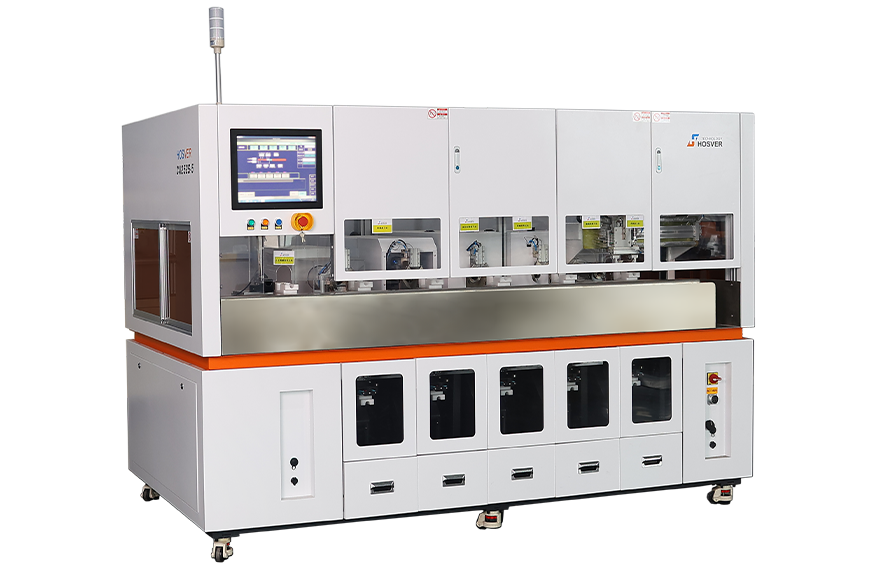

Outer/inner striping and shield cutting/flippingcombination machine-five stations

The five processes of outer striping,aluminum foil removal,shield cutting,shield flipping andinner striping are completed at one time.

The inner and outer striping are cut by rotary cutting,and half or full stripping can be selected.

Foil removal will not cause functional damage to the shield.

The shield is cut neatly,flat,and without residue.

The shield is cut without damage to the inner insulation layer

The shield is flipped over as a whole and just at one time.

All processes are modular and can be adjusted according to the process.

cable diameter range:3-70mm²

striping length:5-60mm

shieldflipping length:5-55mm

shield cutting length:5-20mm

power supply:AC380V 3P+N+PE 50/60Hz

capacity:9000w

gas source:0.5-0.8mpa

dimension:2200*1350*2000
